08 Regression

Material:

ASPE: 11 (not 11.9)

Recap notes

Session notes

Session material

Session from 20/21:

Session Description

Linear regression is a statistical method used to model the relationship between a dependent variable and one or more independent variables. The key elements of linear regression include the dependent variable, independent variable(s), regression coefficients, intercept, and residual error. The regression coefficients represent the change in the dependent variable associated with a one-unit change in the independent variable, while the intercept represents the expected value of the dependent variable when all independent variables are equal to zero. The residual error is the difference between the observed values of the dependent variable and the values predicted by the regression model. The goal of linear regression is to find the best-fitting line that minimizes the sum of the squared residual errors. Linear regression is a widely used method in various fields to make predictions or estimate the strength and direction of relationships between variables.

Key Concepts

  • Least Squares Estimates
  • Regression Equation
  • Correlation
  • Coefficient of determination
  • Prediction
  • Residual Analysis

I've added a page with all the useful formulas for calculating the parameters as well as the performance metrics, \(r\) and \(r^2\)

Exercises

Exercise 1 (2020.4)

Hydrocarbon emissions from cars are known to have decreased dramatically during the 2010s. A study was conducted to compare the hydrocarbon emissions at idling speed, in parts per million (ppm), for automobiles from 2010 and 2020. Fifty cars of each model year were randomly selected, and their hydrocarbon emission levels were recorded. The data is displayed in "HydroCarbonEmissions.xlsx".

  1. Determine estimates for the quartiles, average emission, standard deviation and variance of each model year.
  2. Setup \(95 \%\) confidence intervals for the mean of each model year, and accompany the intervals with plots that display the rejection region
  3. Is it reasonable to assume that the emission of each model year is normally distributed? Explain using plots and discussing skewness and kurtosis.
  4. Setup a \(99 \%\) confidence interval for the mean emission difference between the two model years and accompany the intervals with plots that display the rejection region.
  5. Is there significant evidence to support the claim that the mean emission difference between the two model years differ from one another?
Answer
df = pd.read_excel("HydroCarbonEmissions.xlsx")
df.head()

  1. display(Latex("For 2010 model:"))
display(Latex("$$Q_1 = {}$$".format(np.percentile(df['2010s models'], 25))))
display(Latex("$$Q_2 = {}$$".format(np.percentile(df['2010s models'], 50))))
display(Latex("$$Q_3 = {}$$".format(np.percentile(df['2010s models'], 75))))
display(Latex("$$\mu = {}$$".format(df['2010s models'].mean())))
display(Latex("$$\sigma = {}$$".format(round(df['2010s models'].std(ddof=1), 2))))
display(Latex("$$\sigma^2 = {}$$".format(round(df['2010s models'].var(ddof=1), 2))))

display(Latex("For 2020 model:"))
display(Latex("$$Q_1 = {}$$".format(np.percentile(df['2020s models'], 25))))
display(Latex("$$Q_2 = {}$$".format(np.percentile(df['2020s models'], 50))))
display(Latex("$$Q_3 = {}$$".format(np.percentile(df['2020s models'], 75))))
display(Latex("$$\mu = {}$$".format(df['2020s models'].mean())))
display(Latex("$$\sigma = {}$$".format(round(df['2020s models'].std(ddof=1), 2))))
display(Latex("$$\sigma^2 = {}$$".format(round(df['2020s models'].var(ddof=1), 2))))

    For 2010 model:

    \[\begin{gathered} Q_1=258.0 \\ Q_2=396.5 \\ Q_3=506.75 \\ \mu=391.6 \\ \sigma=180.95 \\ \sigma^2=32743.31 \end{gathered}\]

    For 2020 model:

    \[\begin{aligned} &Q_1=92.75\\ &Q_2=201.0\\ &Q_3=306.0\\ &\mu=197.44\\ &\sigma=115.54\\ &\sigma^2=13349.39 \end{aligned}\]
  2. n10 = len(df['2010s models'])
m10 = np.mean(df['2010s models'])
SE10 = stats.sem(df['2010s models'])
Level = 0.95

CI10 = stats.t.interval(Level, n10-1, loc=m10, scale=SE10)

n20 = len(df['2020s models'])
m20 = np.mean(df['2020s models'])
SE20 = stats.sem(df['2020s models'])

CI20 = stats.t.interval(Level, n20-1, loc=m20, scale=SE20)

display(Latex('A ' + repr(int(Level*100)) + ' % confidence interval for the sample mean of the 2010 models is ['+
            repr(round(CI10[0],3)) + ' ; ' + repr(round(CI10[1],3)) + ']'))
display(Latex('A ' + repr(int(Level*100)) + ' % confidence interval for the sample mean of the 2020 models is ['+
            repr(round(CI20[0],3)) + ' ; ' + repr(round(CI20[1],3)) + ']'))


# Confidence interval calculations
CI10 = stats.norm.interval(0.95, loc=m10, scale=SE10)
CI20 = stats.norm.interval(0.95, loc=m20, scale=SE20)

# Plotting
plt.figure(figsize=(10, 6))
x10 = np.linspace(m10 - 4*SE10, m10 + 4*SE10, 1000)
z10 = np.linspace(CI10[0], CI10[1], 1000)
y10 = stats.norm.pdf(x10, m10, SE10)
plt.plot(x10, y10, color='blue', label='2010s models PDF')
plt.fill_between(z10, stats.norm.pdf(z10, m10, SE10), color='blue', alpha=0.5, label='2010s CI')

x20 = np.linspace(m20 - 4*SE20, m20 + 4*SE20, 1000)
z20 = np.linspace(CI20[0], CI20[1], 1000)
y20 = stats.norm.pdf(x20, m20, SE20)
plt.plot(x20, y20, color='green', label='2020s models PDF')
plt.fill_between(z20, stats.norm.pdf(z20, m20, SE20), color='green', alpha=0.5, label='2020s CI')

plt.title('Probability Density Function and Confidence Intervals for 2010s and 2020s Models')
plt.xlabel('Value')
plt.ylabel('Probability Density')
plt.legend()
plt.grid(True)
plt.show()

    A 95 % confidence interval for the sample mean of the 2020 models is [164.604 ; 230.276]

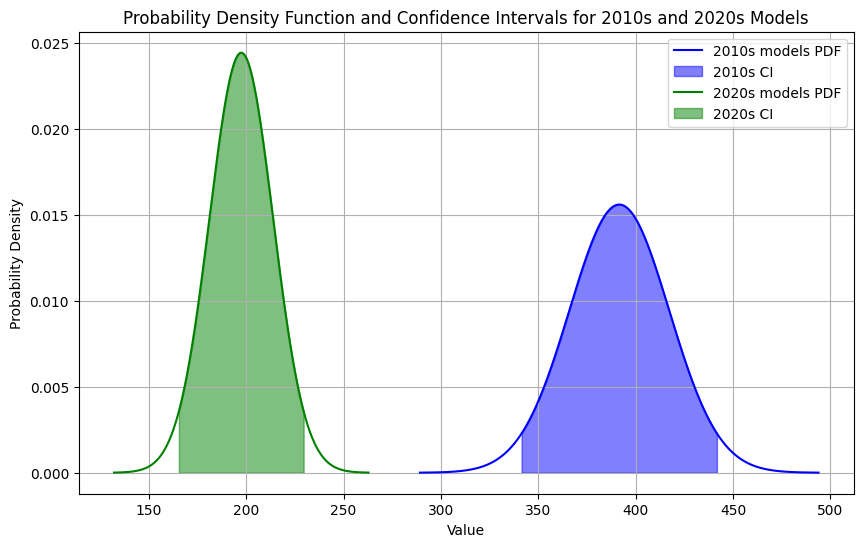

    Confidence Intervals for 2010s and 2020s Models

Exercise 2 (2020.5)

The dataset for this assignment is "Wages_and_Work_Hour.xlsx". This workbook contains data on fulltime workers in East North Central United States from the March 1999 CPS. The objective is to determine whether Education, Income, and Gender differ.

Variable notes:

  • Education Level: Group 1 has less than 13 years of education. Group 2 has between 13 and 15 years of education (both included). Group 3 has 16 years or more of education.
  • Income Group: Group 1 has less than or equal to \(\$ 20,000\) in income. Group 2 has between \(\$ 20,000\) and \(\$ 48,000\) in income (both included). Group 3 has more than \(\$ 48,000\) in income.


  1. Create a contingency table, placing Gender on the vertical axis and Education Level on the horizontal axis, and test whether gender is independent of level of education.
  2. Create a contingency table, placing Gender on the vertical axis and Income Group on the horizontal axis, and test whether gender is independent of income.
  3. Create a contingency table, placing Education Level on the vertical axis and Income Group on the horizontal axis, and test whether Education Level is independent of Income Group.
Answer

  1. Contingency Table

    Income Group 1 2 3
    Female 1044 727 720
    Male 1577 922 1060

    Critical Value: 5.9915
    Chi-squared Statistic: 8.1127, Degrees of Freedom: 2
    Expected Frequencies:

    Gender Education Level 1 Education Level 2 Education Level 3
    Female 1079.16 678.95 732.89
    Male 1541.84 970.05 1047.11

    Test Conclusion: Reject \(H_0\) since p-value \(=0.0173<0.05\)

  2. Contingency Table

    Gender Income Group 1 Income Group 2 Income Group 3
    Female 957 1202 332
    Male 679 1651 1229

    Critical Value: 5.9915
    Chi-squared Statistic: 459.1215, Degrees of Freedom: 2
    Expected Frequencies:

    Gender Income Group 1 Income Group 2 Income Group 3
    Female 673.60 1174.68 642.72
    Male 962.40 1678.32 918.28

    Test Conclusion: Reject \(H_0\) since p-value \(=0.0000<0.05\)

  3. Contingency Table

    Income Group 1 2 3
    Education Level 1 1025 1279 317
    Education Level 2 437 861 351
    Education Level 3 174 713 893

    Critical Value: 9.4877
    Chi-squared Statistic: 980.4959, Degrees of Freedom: 4

    Expected Frequencies:

    Income Group 1 2 3
    Education Level 1 708.75 1235.99 676.26
    Education Level 2 445.91 777.62 425.47
    Education Level 3 481.34 839.40 459.27

    Test Conclusion: Reject \(H_0\) since p-value \(=0.0000<0.05\)

Exercise 3 (2020.6)

State the null and alternative hypotheses to be used in testing the following claims and determine generally where the rejection region is located (i.e. is it a right-, left- or two-tailed test):

  1. The mean snowfall at Bygholm during the month of February is 21.8 centimeters.
  2. No more than \(20 \%\) of the faculty at VIA are competent teachers.
  3. On the average, children attend schools within 2.62 kilometres of their homes in Denmark.
  4. The proportion of voters favoring the incumbent in the upcoming American election is 0.38 .
  5. The average cabbage at the grocery store weighs at least 240 grams (Source: our colleague Jakob Knop Rasmussen).
Answer

  1. The parameter of interest is the mean snowfall in Bygholm for February.

    \[ \begin{aligned} & H_0: \mu=21.8 \mathrm{~cm} \\ & H_1: \mu \neq 21.8 \mathrm{~cm} \end{aligned} \]

    Two-tailed test.

  2. The parameter of interest is the proportion of competent teachers at VIA.

    \[ \begin{aligned} & H_0: p \leq 0.2 \\ & H_1: p>0.2 \end{aligned} \]

    Right-tailed test.

  3. The parameter of interest is the average school proximity to homes of children.

    \[ \begin{aligned} & H_0: \mu \leq 2.62 \mathrm{~km} \\ & H_1: \mu>2.62 \mathrm{~km} \end{aligned} \]

    Right-tailed test.

  4. The parameter of interest is the proportion of voters favoring the incumbent in the upcoming American election.

    \[ \begin{aligned} & H_0: p=0.38 \\ & H_1: p \neq 0.38 \end{aligned} \]

    Two-tailed test.

  5. The parameter of interest is the average weight of cabbages at the grocery.

    \[ \begin{aligned} & H_0: \mu \geq 240 g \\ & H_1: \mu<240 g \end{aligned} \]

    Left-tailed test.

Exercise 4 (2020.7)

A professor in the School of Engineering in a university polled a dozen colleagues about the number of professional meetings they attended in the past five years \((x)\) and the number of papers they submitted to refereed journals \((y)\) during the same period. The summary data are given as follows:

\[ \begin{aligned} n & =12, \quad \bar{x}=4, \quad \bar{y}=12 \\ \sum_{i=1}^n x_i^2 & =232, \quad \sum_{i=1}^n x_i y_i=318 \end{aligned} \]

Fit a simple linear regression model between \(x\) and \(y\) by finding out the estimates of intercept and slope. Hint: Use the Least Squares Estimates formula from the book.

Answer
\[\begin{aligned} &\text { From the data summary we get }\\ &\begin{aligned} & \hat{B}_1=\frac{(12)(318)-[(4)(12)][(12)(12)]}{(12)(232)-[(4)(12)]^2}=-6.45 \\ & \hat{B}_0=12-(-6.45)(4)=37.8 \end{aligned} \end{aligned}\]

Exercise 5 (Reexam 2018.4)

Two producers of batteries measure the longevity of 30 batteries of the same type, which were randomly chosen from a larger batch of such batteries. The lifetime (in hundreds of hours) is displayed "Batteries.xlsx".

  1. Check the dataset for outliers and replace any outliers with the mean lifetime of the producer in question. Use this cleaned dataset in the following questions.
  2. Determine estimates for the quartiles, average lifetime, standard deviation and variance of each producer's battery
  3. Setup \(95 \%\) confidence intervals for each mean battery lifetime from the two producers, and accompany the intervals with plots that display the rejection region.
  4. Is it reasonable to conclude that the lifetime of the two producer's battery follow a normal distribution? Explain using plots and discussing skewness and kurtosis.
  5. Setup a \(95 \%\) confidence interval for the difference between the two producer's battery, and accompany the intervals with plots that display the rejection region.
  6. Is there significant evidence to support the claim that the mean lifetime of the batteries from the two producers differ from one another?
  7. Setup a test to test whether the standard deviations of the two batteries differ significantly.
Answer
  1. Producer 1 Producer 2
    0 2.1162 1.1259
    1 2.5135 3.1725
    2 1.8137 2.4492
    3 0.8075 3.7766
    4 1.5554 4.4673

  2. Producer 1:

    \[ \begin{aligned} q 1 & =1.1888 \\ q 2 & =1.9196 \\ q 3 & =2.4074 \\ q 4 & =3.637 \\ & \text { average }=1.9029 \\ & \text { std }=0.9109 \\ & \text { std }=0.8298 \end{aligned} \]

    Producer 2:

    \[ \begin{aligned} & q 1=2.0375 \\ & q 2=2.5158 \\ & q 3=3.0069 \\ & q 4=4.4673 \\ & \text { average }=2.4776 \\ & \text { std }=0.9124 \\ & \text { std }=0.8325 \end{aligned} \]

  3. 95% Confidence Interval mean Producer 1: [1.56, 2.24]

  4. Producer 1:

    Skewness = 0.1134

    Kurtosis = -0.4326

    Producer 2:

    Skewness = -0.1821

    Kurtosis = -0.19

  5. 95% Confidence Interval for the Difference in Means: [-1.05, -0.10]

  6. Reject since 0.0177 < 0.05

  7. Fail to reject the null hypothesis: the standard deviations are not different

Exercise 6 (Reexam 2018.5)

Data collected in 1960 from the National Cancer Institute provides the per capita numbers of cigarettes sold along with death rates for various forms of cancer (see Smoking and Cancer.xlsx).

  1. Build regression models with cigarettes sold as the independent variable and each of the four cancer types as the dependent variable. Accompany each model with a scatterplot and a trend line as well as confidence intervals for the regression parameters.

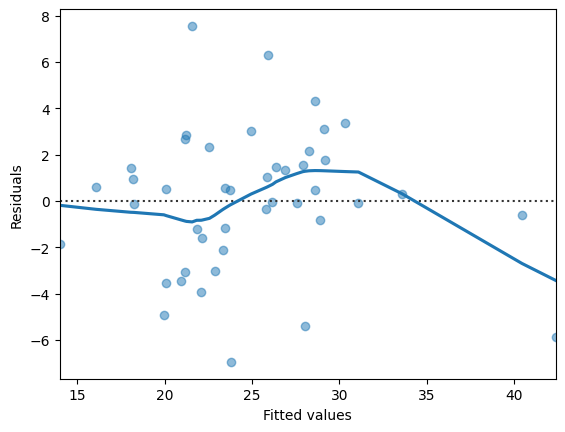

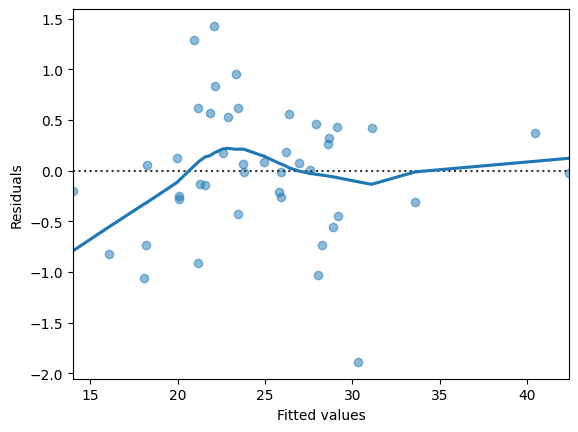

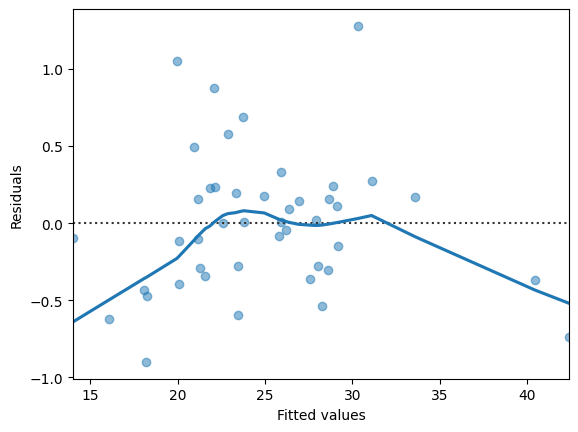

  2. For each model, inspect the residuals to confirm that the assumptions about normality and non-patterns are met.
  3. Which of the four cancer types exhibit the best correlation with cigarettes sold? Assess using the correlation coefficient.
  4. In which data pairs is cigarettes sold a good predictor for the type of cancer? Assess using the correlation of determination and interpret the meaning of this number.
  5. For the model that has the best correlation, find the predicted value of deaths per 100 k for 40 and 50 cigarettes sold per capita. Feel free to include \(95 \%\) prediction intervals to your predictions.
Answer

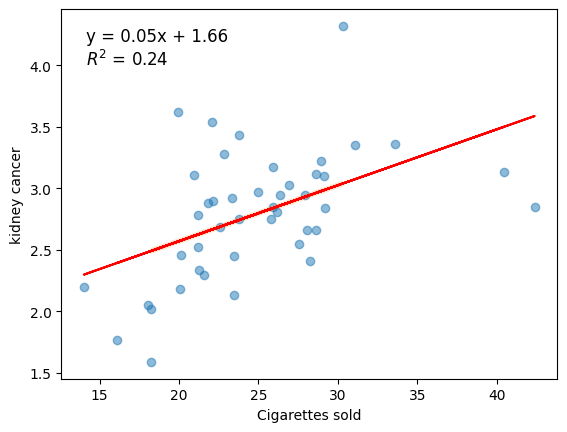

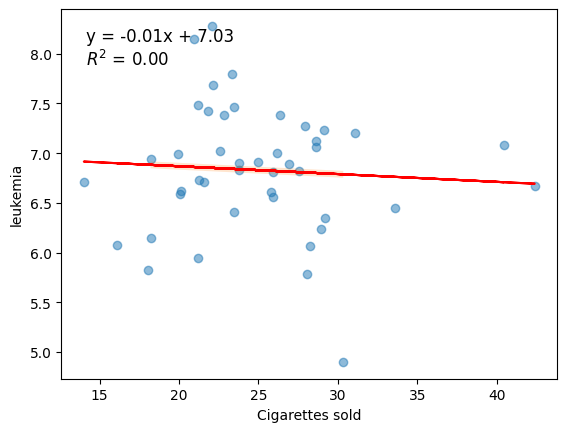

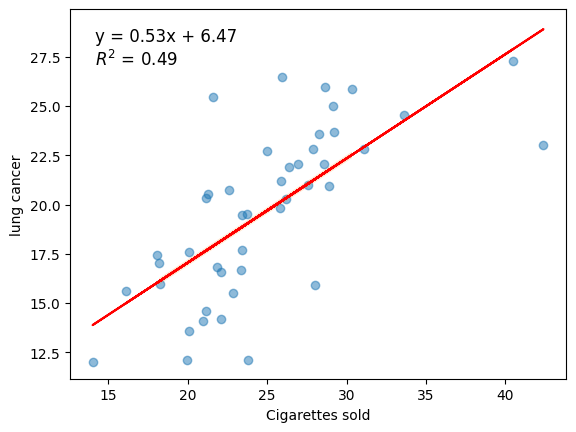

  1. Regression Models Regression Models
    Regression Models Regression Models

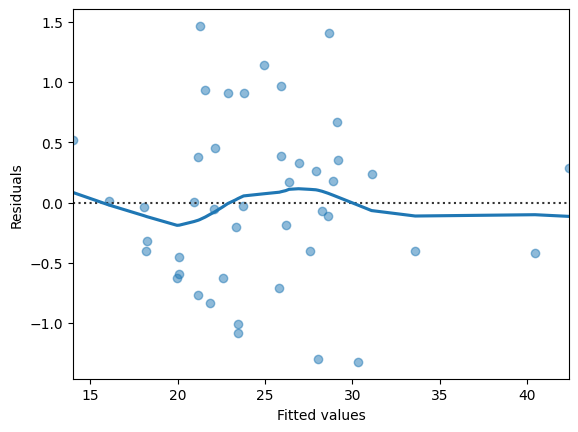

  2. Regression Models Regression Models
    Regression Models Regression Models

  3. Correlation coefficient for bladder cancer model: 0.703621859461442

  4. Correlation coefficient for bladder cancer model: 0.703621859461442

    R-squared for bladder cancer model: 0.4950837211119772

  5. Bladder cancer rate for cigarette sales of 40: 5.96

    Bladder cancer rate for cigarette sales of 50: 7.18

Exercise 7 (Reexam 2018.6)

The dataset for this assignment is the infamous Titanic data set (please see Titanic.xlsx). The objective is to determine whether the survival rates differ between selected variables.

Variable notes:

  • pclass: A proxy for socio-economic status
  • 1st \(=\) Upper
  • 2nd \(=\) Middle
  • 3rd \(=\) Lower
  • age: Age is fractional if less than 1. If the age is estimated, is it in the form of xx.5
  • sibsp: The dataset defines family relations in this way...
  • Sibling = brother, sister, stepbrother, stepsister
  • Spouse \(=\) husband, wife (mistresses and fiancés were ignored)
  • parch: The dataset defines family relations in this way...
    • Parent \(=\) mother, father
    • Child \(=\) daughter, son, stepdaughter, stepson
    • Some children travelled only with a nanny, therefore parch=0 for them.
  • alone: is a variable that was created from combining sibsp and parch.


  1. Create a contingency table, placing survived on the vertical axis and pclass on the horizontal axis.
  2. Test whether survival rate is independent of pclass.
  3. Create a contingency table, placing survived on the vertical axis and sex (gender) on the horizontal axis.
  4. Test whether survival rate is independent of sex (gender).
  5. Create a contingency table, placing survived on the vertical axis and alone on the horizontal axis.
  6. Test whether survival rate is independent of whether a person travelled alone or not.
Answer
  1. pclass
    survived    		 1 2 3
    0 123 158 528
    1 200 119 181

  2. Reject the null hypothesis: 'pclass' and 'survived' are not independent

  3. survived 0 1
    sex
    female 127 339
    male 682 161

  4. Reject the null hypothesis: 'sex' and 'survived' are not independent

  5. survived
    alone    		 0 1
    \(\theta\) 258 261
    1 551 239

  6. Reject the null hypothesis: 'alone' and 'survived' are not independent

Exercise 8 (2018.6)

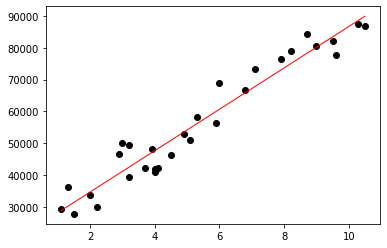

The data in Salary.xlsx show the (monthly) salary along with years of experience of 31 software developers.

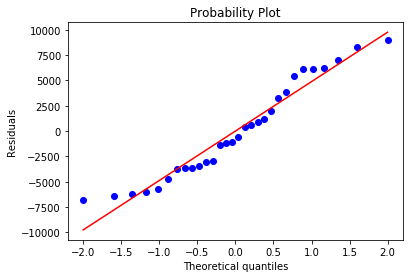

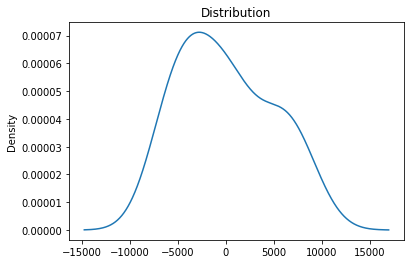

  1. Create a complete regression analysis of the data mentioned above. Your analysis must include a plot of the data, considerations about outliers, estimates for the regression parameters and confidence intervals for these, considerations about the assumptions of the model, as well as an assessment of the adequacy of the model.
  2. According to the model, what salary can a newly graduated software developer with no experience expect?
  3. Assuming the developer starts his/her career at 27 and retires when he/she is 67 , what will be the salary of the developer when he/she retires? Does this sound plausible?
Answer
  1. OLS Regression Results
    Dep. Variable: Salary R-sq uared: 0.936
    Model: OLS Adj. R-sq uared: 0.934
    Method: Least Squares F-st atistic: 412.4
    Date: Mon, 01 F eb 2021 Pr Prob (F-sta tistic): \(2.72 \mathrm{e}-18\)
    Time: 14:20:57 L Log-Likel ihood: -296.40
    No. Observations: 30 AIC: 596.8
    Df Residuals: 28 BIC: 599.6
    Df Model: 1
    Covariance Type: : nonrobust
    coef std err t \(\mathrm{P}>\|\mathrm{t}\|\) [0.025 0.975]
    const \(2.162 e+04\) 1921.463 11.254 0.000 \(1.77 \mathrm{e}+04\) \(2.56 \mathrm{e}+04\)
    YearsExperience 6501.7589 320.170 20.307 0.000 5845.921 7157.597
    Omnibus: 4.321 Du bin-Watson: n: 1.751
    Prob(Omnibus): 0.115 Jarq ue-Bera (JB): ): 2.044
    Skew: 0.330 Prob(JB): ): 0.360
    Kurtosis: 1.905 Cond. No. o. 13.2

    Wrnings:

    [1] Standard Errors assume that the covariance matrix of the errors is correctly specified.

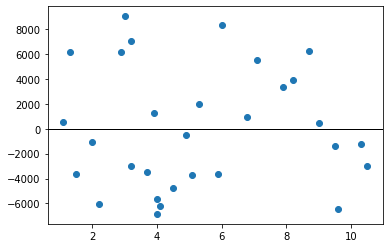

    Regression Analysis

    Regression Analysis

    Regression Analysis

    Skewness = 0.3305

    Kurtosis = -1.0946

    Regression Analysis

  2. A newly employed developer can expect a monthly wage of kr. 21623.65

  3. If a software developer retires after 40 years, he or she will have a wage of kr. 281694.01

    (This sounds very unlikely!)

Exercise 9 (2017.4)

An industrial safety program was recently instituted in the computer chip industry. The average weekly loss (averaged over 1 month) in labor-hours due to accidents in 10 similar plants both before and after the program are as follows:

Plant Before After
1 30.5 23
2 18.5 21
3 24.5 22
4 32 28.5
5 16 14.5
6 15 15.5
7 23.5 24.5
8 25.5 21
9 28 23.5
10 18 16.5
  1. Determine whether the safety program has had a significant effect on reducing labor-hours due to accidents in the 10 plants.
  2. Is there evidence to support the claim that the program has had an effect at the \(1 \%\) level of significance?
Answer

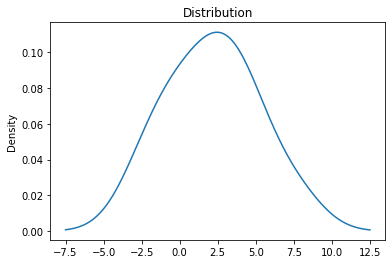

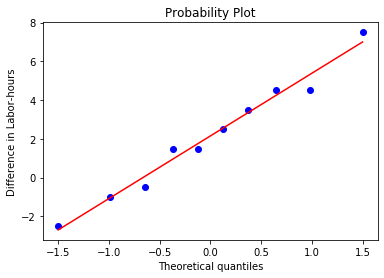

  1. Regression Analysis

    Skewness = 0.1328

    Kurtosis = -0.7163

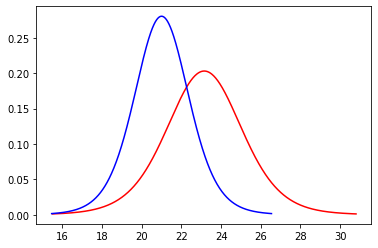

    Regression Analysis Regression Analysis

    Reject since 0.02485 < 0.05

  2. same p-value different alpha, so no.

Exercise 10 (2017.5)

A recent study among 254 computer science graduates from Aarhus University was made in order to determine how successful the former students were in their current employment. 98 of these students had taken a course in linear algebra and of these 92 were classified as "successful" in their current employment. 136 of the students who had not taken a course in linear algebra were classified as "successful" in their current employment.

  1. Is the evidence to support the claim that computer science graduates who had taken a linear algebra course were more successful in their current employment than those who had not taken such a course?
  2. Explain the meaning of the p-value obtained in question (a), i.e. what does this probability refer to?
Answer

  1. Reject since 0.0432 < 0.05

    Z-Test Results for Two Proportions Z-Score: 1.71 P-Value: 0.0432 Significance Level (Alpha): 0.05 Conclusion: Reject the null hypothesis since p-value < alpha.

  2. see other answers elsewhere

Exercise 11 (2017.6)

As part of their final project, two ICT students are working on a data warehouse support system. The major workload is the warehouse orders. Thus, the key business metric is identified as number of order lines. The students want to find a method to predict CPU utilization based on the number of order lines entered into the system and have collected 31 samples of CPU utilization and number of order line entries

Sample # CPU Utilisation Order lines per day
1 27.01 16483
2 32.43 13142
3 21.74 12015
4 20.56 11986
5 2.85 1119
6 1.41 0
7 1.45 0
8 46.38 12259
9 21.95 6531
10 29.55 14086
11 30.04 12797
12 28.08 13141
13 3.26 454
14 1.62 1
15 29.41 5971
16 40.02 10901
17 29.86 14271
18 28.34 13728
19 34.82 12938
20 3.22 1158
21 1.43 0
22 34.22 11450
23 23.58 5311
24 33.66 17073
25 23.36 11336
26 26.76 7340
27 4.31 11330
28 2.62 0
29 33.44 10679
30 29.19 12803
31 28.11 12827

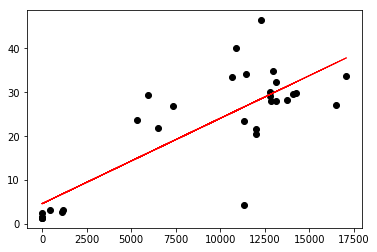

  1. Create a complete regression analysis of the data above. Your analysis must include a plot of the data, considerations about outliers, estimates for the regression parameters and confidence intervals for these, considerations about the assumptions of the model, as well as an assessment of the adequacy of the model.
Answer

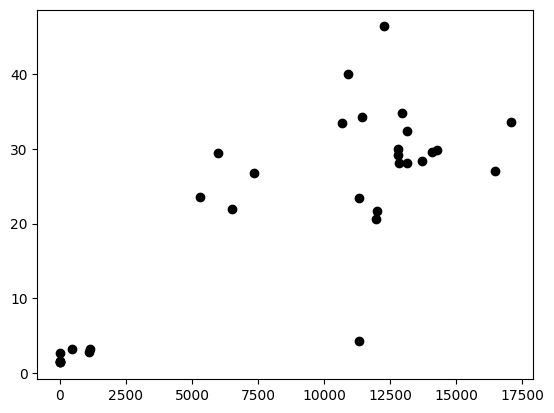

  1. Regression Analysis

    OLS Regression Results
    Dep. Variable: Unnan med: 1 R-squared: 0.669
    Model: OLS Adj. squared: 0.658
    Method: Least Sq quares F-statistic: 58.63
    Date: e: Tue, 27 Nov 2018 Prob (F-statistic): 1.92e-08
    Time: 14:45:20 Log-Likelihood: -107.14
    No. Observations: 31 AIC: 218.3
    Df Residuals: 29 BIC: 221.1
    Df Model: 1
    Covariance Type e: nonrobust 0.975]
    coef std err t \(\mathrm{P}>\|\mathrm{t}\|\) [0.025
    const 4. 6291 2.652 1.745 0.092 -0.796 10.054
    Unnamed: 20. . 0019 0.000 7.657 0.000 0.001 0.002
    Omnibus: 3.065 Durbin-Watson: 1.919
    Prob(Omnibus): 0.216 Jarque-Bera (JB): 2.010
    Skew: 0.000 Prob(JB): \(0.366\)
    Kurtosis: 4.248 Cond. No. \(\quad 1.95 \mathrm{e}+04\)

    Warnings:

    [1] Standard Errors assume that the covariance matrix of the errors is correctly specified.

    [2] The condition number is large, 1.95e+04. This might indicate that there are strong multicollinearity or other numerical problems.

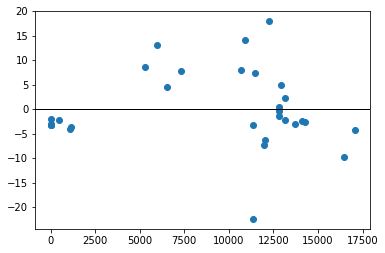

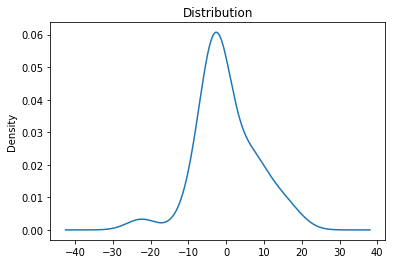

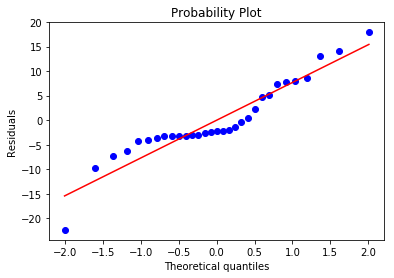

    Regression Analysis Regression Analysis Regression Analysis

    Skewness = 0.0004

    Kurtosis = 1.2476

    Regression Analysis
